Welcome to Wenzhou Yixing Machinery Co.,Ltd.!

2Layer Air Bubble Film Machine-1 Screw

YIHAI MACHINERY Co., LTD is located in Pingyang,wenzhou ,zhejiang province . It Is a innovative enterprises integrating research and development, production. Specialized in the production of air bubble film machine, laminating machine, stretch film machine,film blowing machine, bag making machine, printing machine and plastic packing machinery. Products are approved by CE certification.And the products are exported to overseas.


Detail

Inquery

The machine can produce 2 layers of bubble film, extruder for the single screw design. The main raw materials are LDPE and LLDPE particles. Main components: hopper - extruder - die head - bubble forming die - traction roll - flattening roll - winder - control box
Optional equipment:
1.Chiller
2.Automatic Vacuum Feeder
3.Auto Changing Sieve
4.Blender
5.Scrap Reverse
6.Grinder
7.Auto Rewinder
8.In-line perforated unit


MODEL

MAX.WIDTH

DIA. SCREW

SCREW L:D

CAPACITY(kg/h)

SPEED

TOTAL POWER

YHPE-1000A

1000mm

65

321

40-50

700-1500

55KW

YHPE-1200A

1200mm

65

321

45-60

700-1500

58KW

YHPE-1500A

1500mm

70

321

60-70

700-1500

68KW

YHPE-1600A

1600mm

75

321

60-80

700-1500

72KW

YHPE-1800A

1800mm

80

321

80-90

700-1500

78KW

YHPE-2000A

2000mm

85

321

90-100

700-1300

100KW

YHPE-2200A

2200mm

90

321

90-110

700-1200

120KW











Product Description

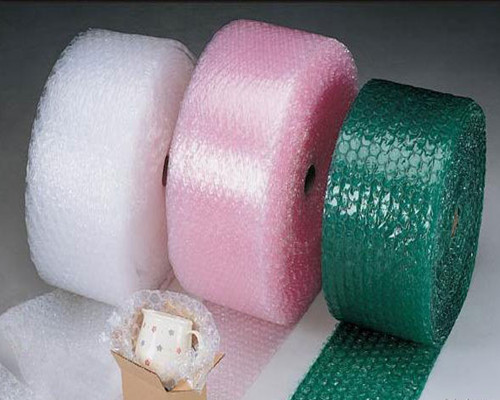

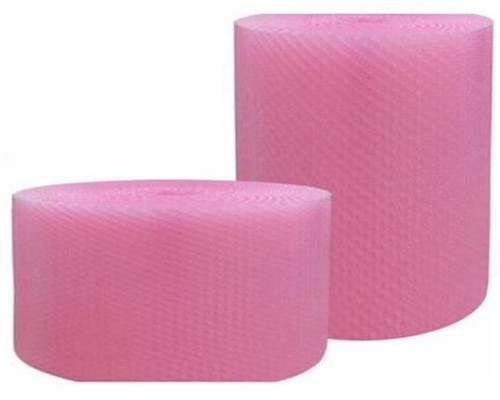

Bubble wrap is the best choice for packaging ,not only fun to pop,the sealed bubbles of air provide superior support and protection to anything  you are packing,and helps ensure all cargo arrives undamaged.

 our company products, all adaped inverter adjust speed, capability stabilization, and retrench energy sources.
Outfit different specifications vacuum
Can outfit corresponded organ. and product compound film of compound plating aluminium  film, air bubble compound EPE pearl cotton and so on

Have a torque winder, the operate is very convenience.
The machine have a water cooler or natural cooler
Unique screw design. can suit for mixing product of LDPE. LLDPE and regenerative material.









Detailed Images

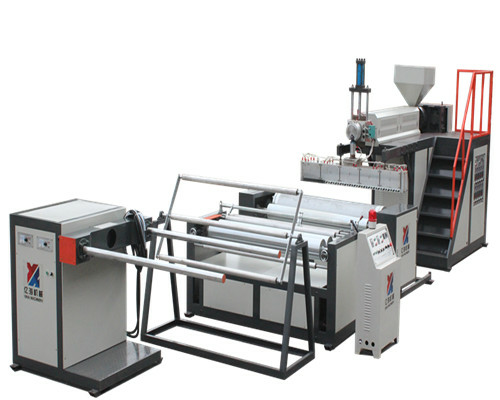

Machine

Name: 2 layers air bubble film machine

Brand: YIHAI

Original: Wenzhou city,zhejiang province,China



Details:This is two layers air bubble film machine,can make the width from 1.2m-3.6m,it widely use in packing furniture,post parcel,houseware,precise instrument and so on








Certifications







Youtube Vedio Link:

https://youtu.be/bSO1ngGsFQ4

https://youtu.be/OpdN_4RfJow
