Welcome to Wenzhou Yixing Machinery Co.,Ltd.!

2-5 layer composite bubble film machine - twin screw extrusion

YIHAI MACHINERY Co., LTD is located in Pingyang,wenzhou ,zhejiang province . It Is a innovative enterprises integrating research and development, production. Specialized in the production of air bubble film machine, laminating machine, stretch film machine,film blowing machine, bag making machine, printing machine and plastic packing machinery. Products are approved by CE certification.And the products are exported to overseas.


Detail

Inquery

The machine is suitable for LDPE and LLDPE particles

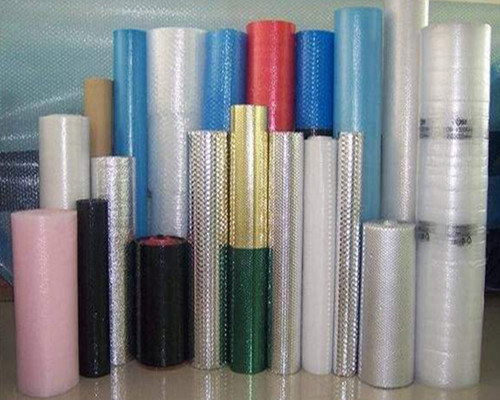

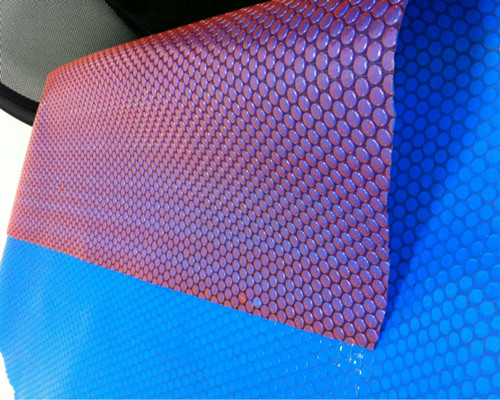

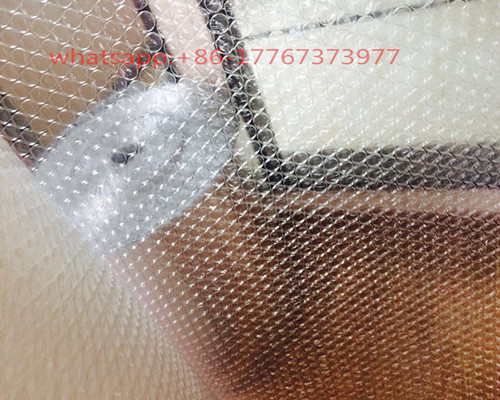

The machine can produce 2-5 layers of bubble film (film + flat film + bubble + flat film + film + film =5 layers), the extruder is composed of the main extruder and the auxiliary extruder, a total of 2 screws, can produce bubble film composite kraft paper, pearl cotton, PET aluminized film, co-extrusion film and other products. 16. The diameter of the bubble in this table is 6-30mm with the change of the flower roller. The products are waterproof, anti-pressure, anti-static, heat insulation and other functions, widely used in furniture, hardware, building materials, electronics, express packaging industry.

Optional equipment:
1.Chiller
2.Automatic Vacuum Feeder
3.Auto Changing Sieve
4.Blender
5.Scrap Reverse
6.Grinder
7.Auto Rewinder
8.In-line perforated unit


MODEL

MAX.WIDTH

DIA. SCREW

SCREW L:D

CAPACITY(kg/h)

SPEED

TOTAL POWER

CONSUMPTION POWER

YHPEG-1000A

1000mm

65/50

321

50-70

700-1500

88KW

25-35KW

YHPGE-F1200A

1200mm

65/50

321

50-80

700-1500

95KW

30-40KW

YHPEG-F1500A

1500mm

75/55

321

70-100

700-1200

108KW

35-45KW

YHPEG-F1600A

1600mm

75/55

321

70-110

700-1200

112KW

35-45KW

YHPEG-F1800A

1800mm

80/65

321

90-130

600-1200

128KW

40-50KW

YHPEG-F2000A

2000mm

85/65

321

100-150

600-1100

150KW

45-60KW

YHPEG-F2200A

2200mm

90/70

321

110-180

600-1000

170KW

50-70KW












Main Features

1) This machine is specially designed for the packing products

2) The machine with high inteligence,high speed and efficiency production,energy saving,

3) The machine can produce 2 layers air bubble film,It has good cushioning effect,shock resistance and heat-sealing performance.

4)  we are the first factory to use the best brand T die,and can adjust the different width automaticlly



Detailed Images

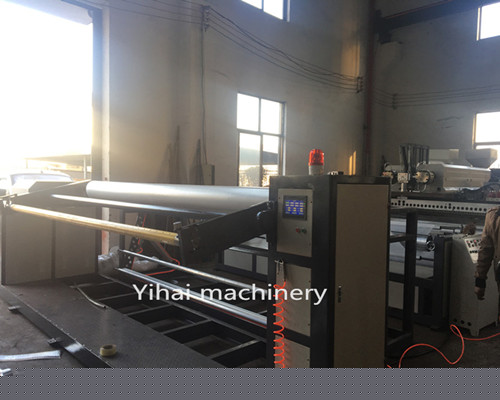

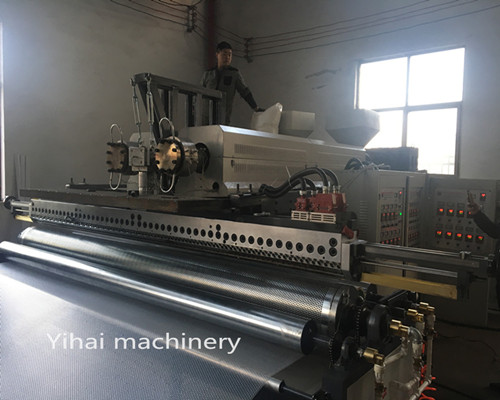

Machine

Name: double screw 2 layers 3600mm air bubble film machine

Brand: YIHAI

Original: Wenzhou city,zhejiang province,China



Details:This is two layers air bubble film machine,can make the width from 1.2m-3.6m,it widely use in packing furniture,post parcel,houseware,precise instrument and so on

Pre-sale Service

· Free consulting about machine type and size.

· 24 hours online service to respond you anytime.

· Videos in details to show you everything you want to know.

· Anything else based on your production needs.

After-sale Service

· Well experienced engineer avaliable to provide oversea service at your place.

· 24 hours online service to respond you anytime.

· Installing, testing and training service.

· Lifelong technical support.

· 1 year warranty.



















Certifications







Youtube Vedio Link:

https://youtu.be/bSO1ngGsFQ4

https://youtu.be/OpdN_4RfJow
