Welcome to Wenzhou Yixing Machinery Co.,Ltd.!

2-5Laye Air Bubble Film Machine-3Screws

YIHAI MACHINERY Co., LTD is located in Pingyang,wenzhou ,zhejiang province . It Is a innovative enterprises integrating research and development, production. Specialized in the production of air bubble film machine, laminating machine, stretch film machine,film blowing machine, bag making machine, printing machine and plastic packing machinery. Products are approved by CE certification.And the products are exported to overseas.


Detail

Inquery

The machine is suitable for LDPE and LLDPE particles
The machine can produce 2-5 layers of bubble film (film + flat film + bubble + flat film + film + film =5 layers). The extruder is made up of the main extruder and the auxiliary extruder, with a total of 3 screws.
The main machine is designed by double screw rod, which can separate control the bottom layer and bubble layer, with the advantages of simple operation, fast speed, high output, beautiful appearance, etc., it can produce bubble film compound kraft paper, pearl cotton, PET aluminized film, co-extrusion film and other products. 16. The diameter of the bubble in this table is 6-30mm with the change of the flower roller. The products are waterproof, anti-pressure, anti-static, heat insulation and other functions, widely used in furniture, hardware, building materials, electronics, express packaging industry.

MODEL

MAX.WIDTH

DIA. SCREW

SCREW L:D

CAPACITY (kg/h)

SPEED

TOTAL OWER

CONSUMPTION POWER

YHPEG-1200B

1200mm

65/55/50

321

100-120

700-1800

110KW

40-50KW

YHPEG-1500B

1500mm

70/60/55

321

110-140

700-1800

120KW

45-60KW

YHPEG-1600B

1600mm

70/60/55

321

110-140

700-1800

135KW

45-60KW

YHPEG-1800B

1800mm

75/60/60

321

120-180

700-1800

158KW

50-65KW

YHPEG-2000B

2000mm

80/65/65

321

140-200

700-1500

188KW

60-70KW

YHPEG-2500B

2500mm

85/70/70

321

180-250

500-1200

230KW

75-85KW

YHPEG-3000B

3000mm

100/85/85

321

260-305

500-1200

250KW

80-100KW

YHPEG-3500B

3500mm

110/95/95

321

300-280

500-1000

270KW

90-110KW








Product Description

Product Application

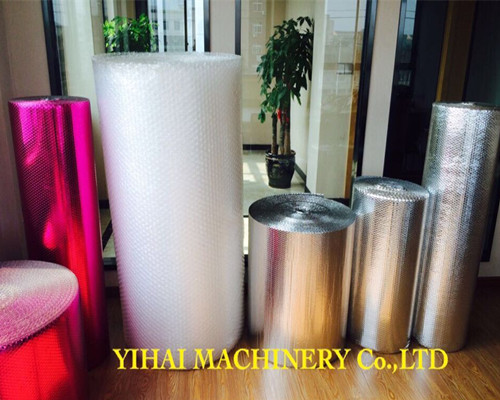

The main raw materials are LDPE and LLDPE particles.produce laminate kraft paper,EPE foam,PET aluminum plating bubble film,By changing the bubble mold roller,the diameter of bubble from 6-30mm,products are water proof,presure proof,antistic,insulation and so on.widely used in furniture,hard ware,building materials,electrics,courier and other packing industry.



Detailed Images

Machine

Name: 5 layers air bubble film machine
Brand: YIHAI
Original: Wenzhou city,zhejiang province,China

Details:products are used in water proof,presure proof,antistic,insulation and so on.widely used in furniture,hard ware,building materials,electrics,courier and other packing industry






Company Information

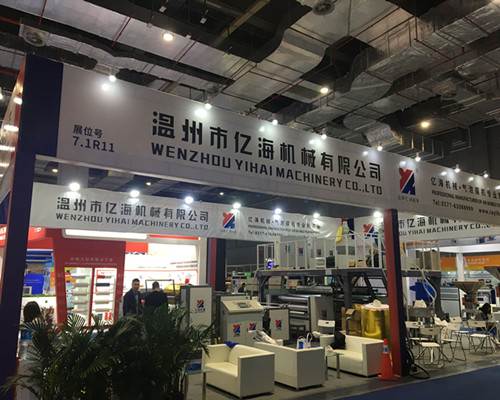

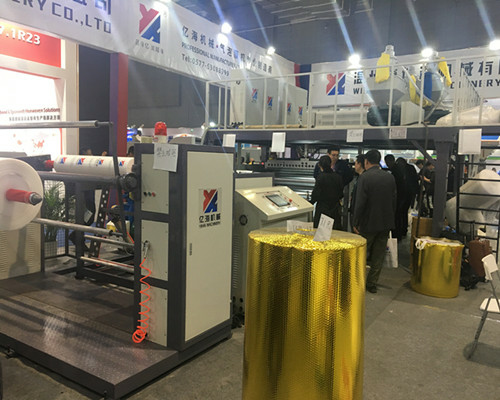

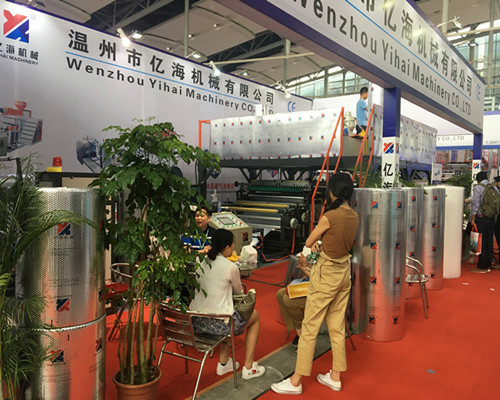

 2015 Chinaplas exhibition


2016 Chinaplas exhibition


2017 Chinaplas exhibition




Youtube Vedio Link:

https://youtu.be/hSa65-YEL1o



https://youtu.be/qv-aAqW8wBE
